Technical Resources

Hansgrohe Specification Library

Complete technical documentation for architects, mechanical engineers, and specification consultants — BIM objects, CAD drawings, installation guides, performance data, and CSI MasterFormat specification language.

Request Custom Spec Package

Resource Library

Everything You Need to Specify with Confidence

BIM Objects

Revit .rfa files, IFC, and ArchiCAD GSM for all active product families. Parametric models include clearance zones and rough-in dimensions.

Revit RFA (Families)
IFC 2×3 / IFC 4
ArchiCAD GSM
Autodesk Revit 2020–2025

Request BIM Files

CAD Drawings

2D AutoCAD DWG and DXF files for plan, elevation, and section views. Includes rough-in templates for all valve configurations.

AutoCAD DWG (2010+)
DXF (Universal)
PDF (Print-ready)
Plan, elevation, section

Request CAD Files

Performance Data

Flow rate certificates, pressure test reports, EcoSmart water consumption data, and Environmental Product Declarations for green building credits.

Flow rate certificates
Environmental Product Declarations
WRAS / UPC test reports
LEED credit documentation

Request Performance Data

CSI Specifications

3-Part MasterFormat specification sections for all major product categories — ready to insert directly into project manuals. Maintained to current edition.

CSI MasterFormat 2020
Division 22 (Plumbing) sections
Word .docx format
Editable specification language

Request CSI Specs

Product Technology

iBox Universal Rough-In System

The iBox Universal is Hansgrohe's most significant engineering advantage for the specification community: a single rough-in body that accepts any Hansgrohe thermostatic or volume control trim. Rough-in during structural phase. Select finishes and trim at fit-out — without opening walls.

Installation Type Concealed, wall-mounted

Compatible Trims All Hansgrohe thermostatic / volume control series

Outlet Options 1, 2, or 3 outlets

Rough-In Depth 69 mm nominal (wall construction-independent)

Test Pressure 1,610 kPa (230 psi)

Download iBox Technical Sheet

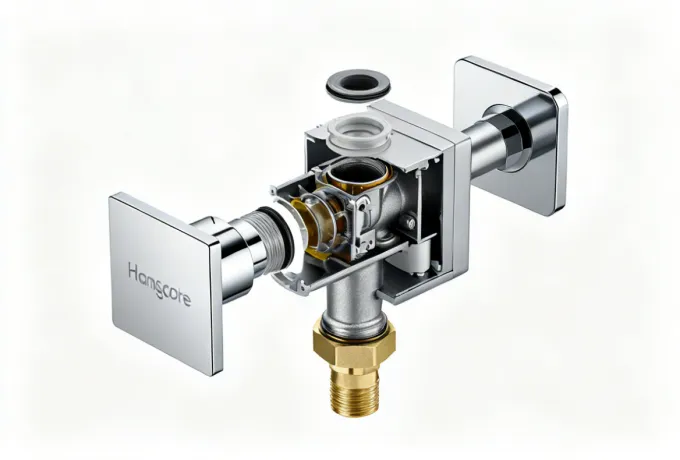

Hansgrohe iBox universal rough-in system technical diagram

Water Conservation

EcoSmart Performance Specifications

Documented flow rates for LEED, BREEAM, and WELL certification submissions. All data certified by independent test laboratories.

Product Category	Standard Flow Rate	EcoSmart Flow Rate	Water Saving	LEED Contribution
Overhead Showers	20 l/min	9.5 l/min	52%	WE Credit 3
Hand Showers	12 l/min	6 l/min	50%	WE Credit 3
Basin Mixers	12 l/min	5 l/min	58%	WE Credit 3
Kitchen Faucets	9 l/min	5.7 l/min	37%	WE Credit 3

* Flow rates measured at 3 bar dynamic pressure per EN 817:2008. Values subject to verification on specific SKU; contact specification team for project-specific data.

Need a Custom Specification Package?

Our specification team will compile BIM files, performance data, and CSI language for your exact product selection — delivered within 48 hours for standard collections.

Request Specification Package
